Engineering Documentation

Avans Rac Series Cut Sheets

Detailed engineering specifications, part numbers, materials, and dimensional data for every component in the Avans Rac storm-hardened racking system.

15 cut sheets
Avans Series W-Beam cut sheet Structural
Structural Component

Avans Series W-Beam

W6x9 wide-flange steel beam in 12.5' and 15' lengths. ASTM A992 steel, mill finish. Primary load-bearing member of the racking system.

PDF 239 KB
View Download

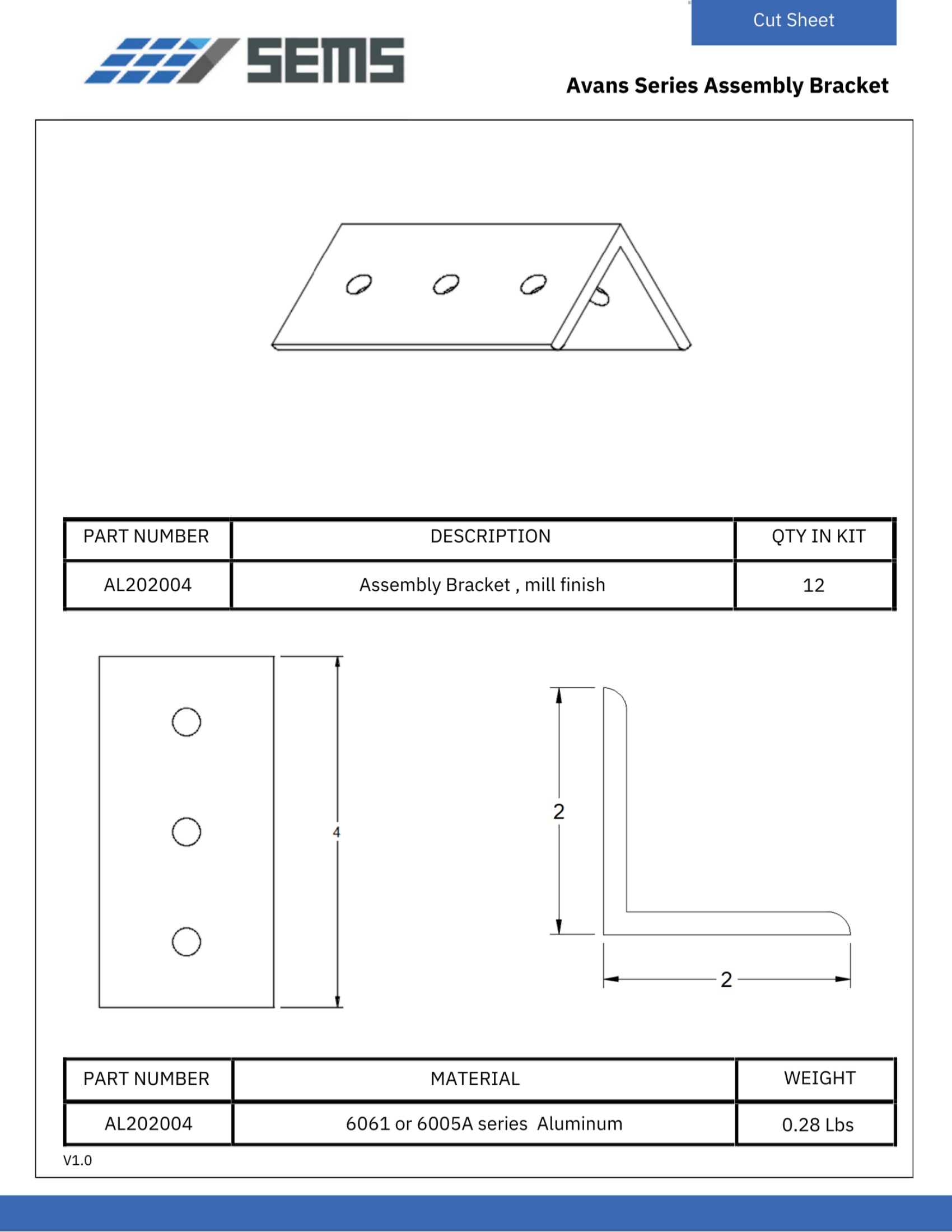

Assembly Bracket cut sheet Structural
Structural Component

Avans Series Assembly Bracket

Precision-formed steel bracket connecting main structural members. Zinc-coated for corrosion resistance in all weather conditions.

PDF 199 KB
View Download

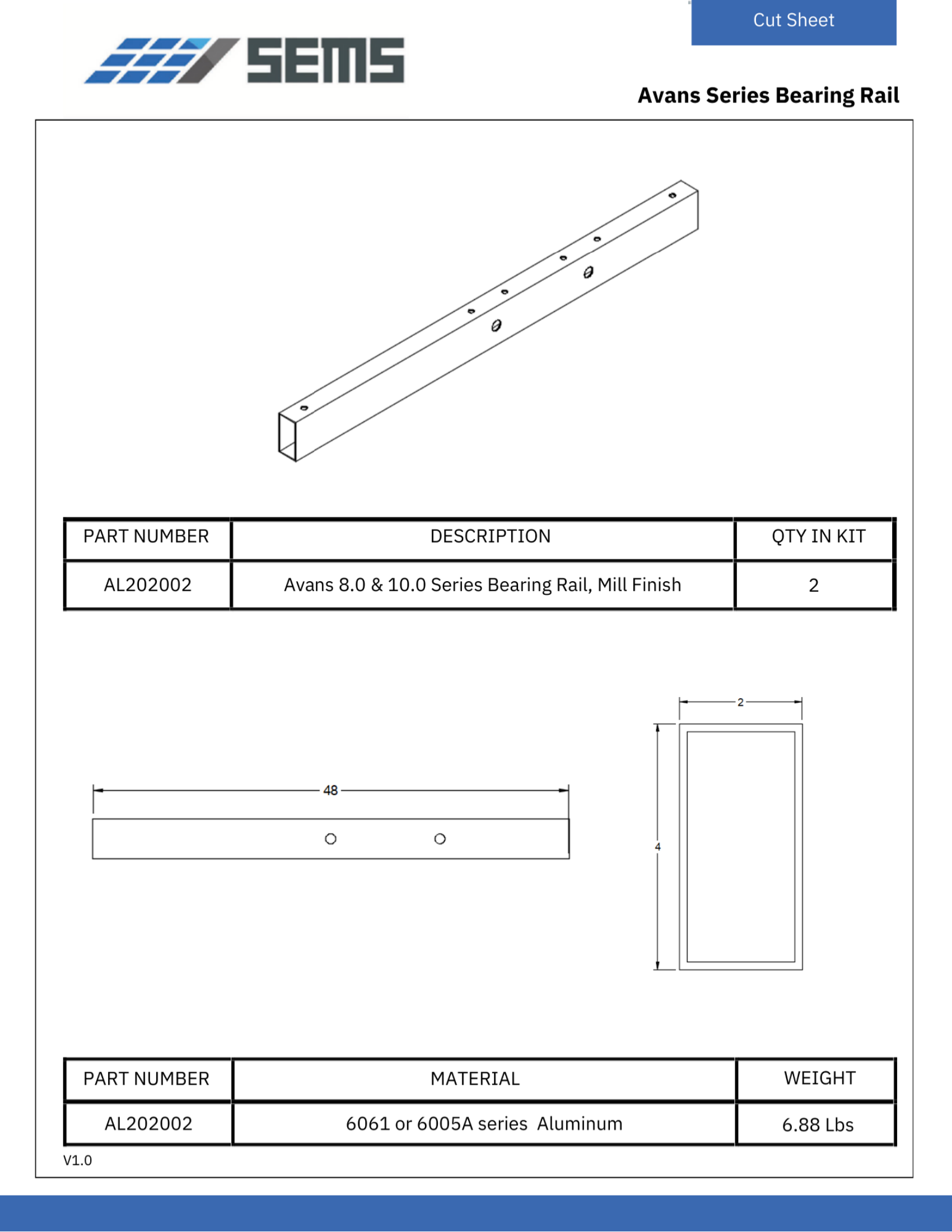

Bearing Rail cut sheet Rails
Rail System

Avans Series Bearing Rail

Tubular aluminum bearing rail providing the primary module mounting surface. Engineered for uniform load distribution across the array.

PDF 209 KB
View Download

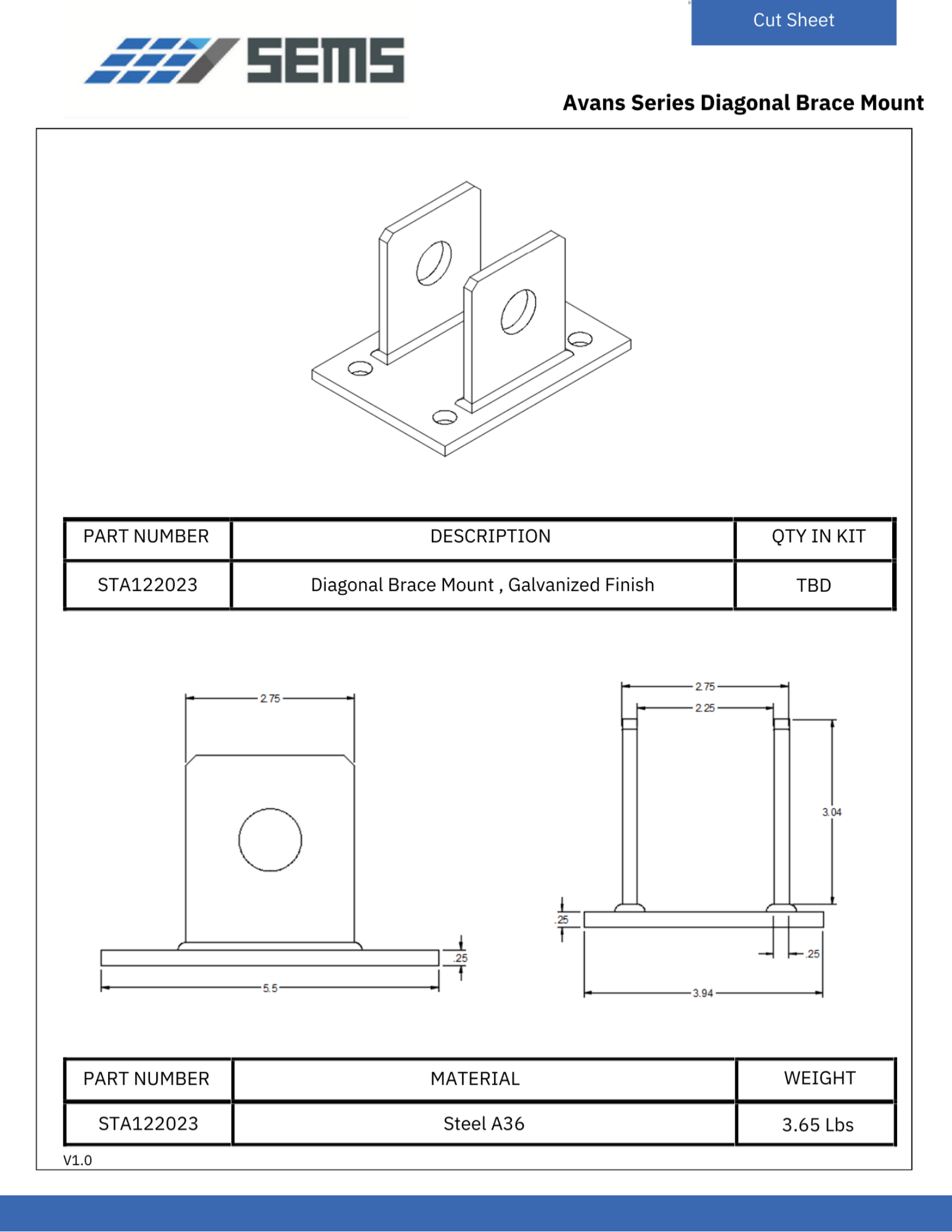

Diagonal Brace Mount cut sheet Structural
Structural Component

Avans Series Diagonal Brace Mount

Steel mounting plate that secures diagonal braces to the W-beam structure. Critical connection point for lateral wind resistance.

PDF 233 KB
View Download

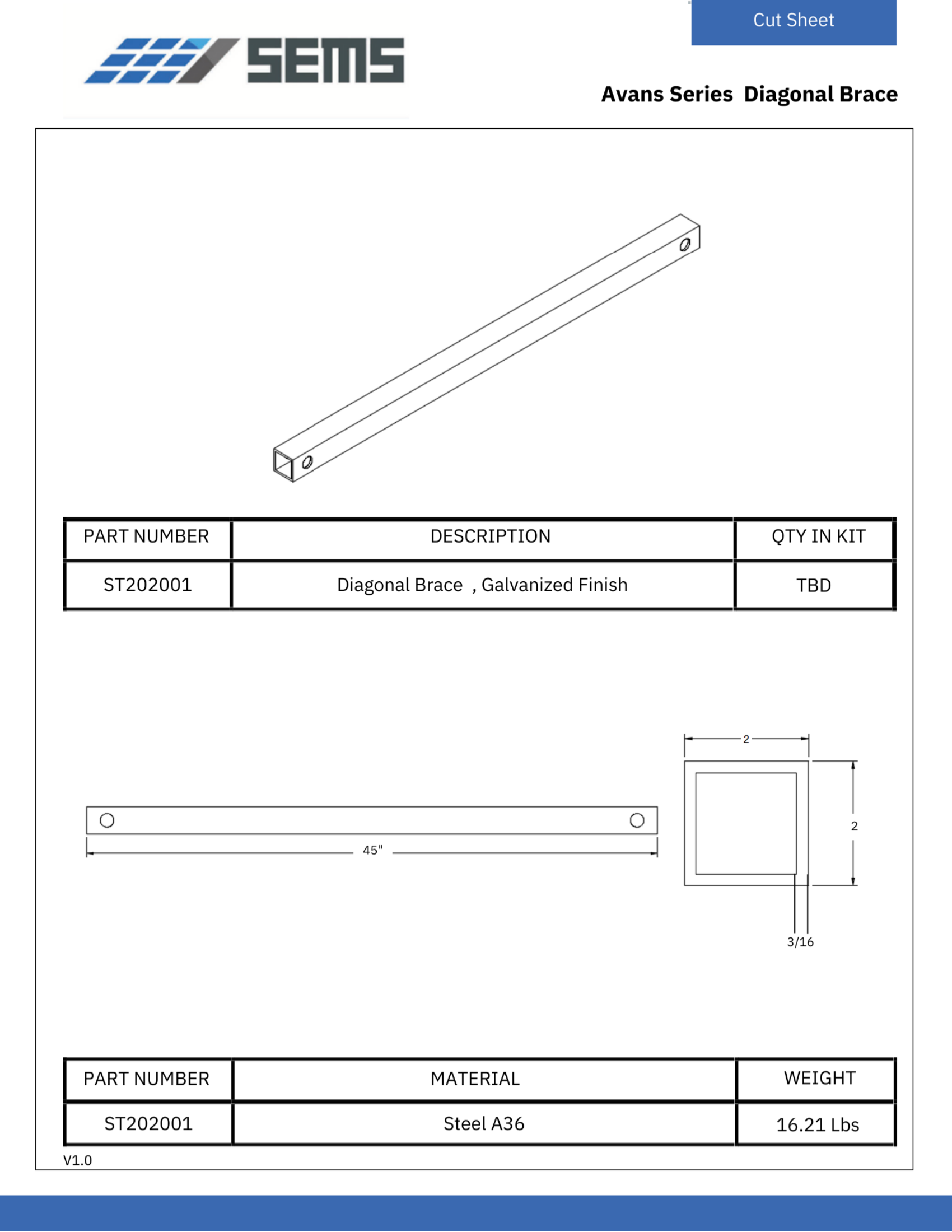

Diagonal Brace cut sheet Structural
Structural Component

Avans Series Diagonal Brace

Tubular steel diagonal brace providing critical lateral stability. Engineered for maximum wind uplift resistance in storm-hardened configurations.

PDF 197 KB
View Download

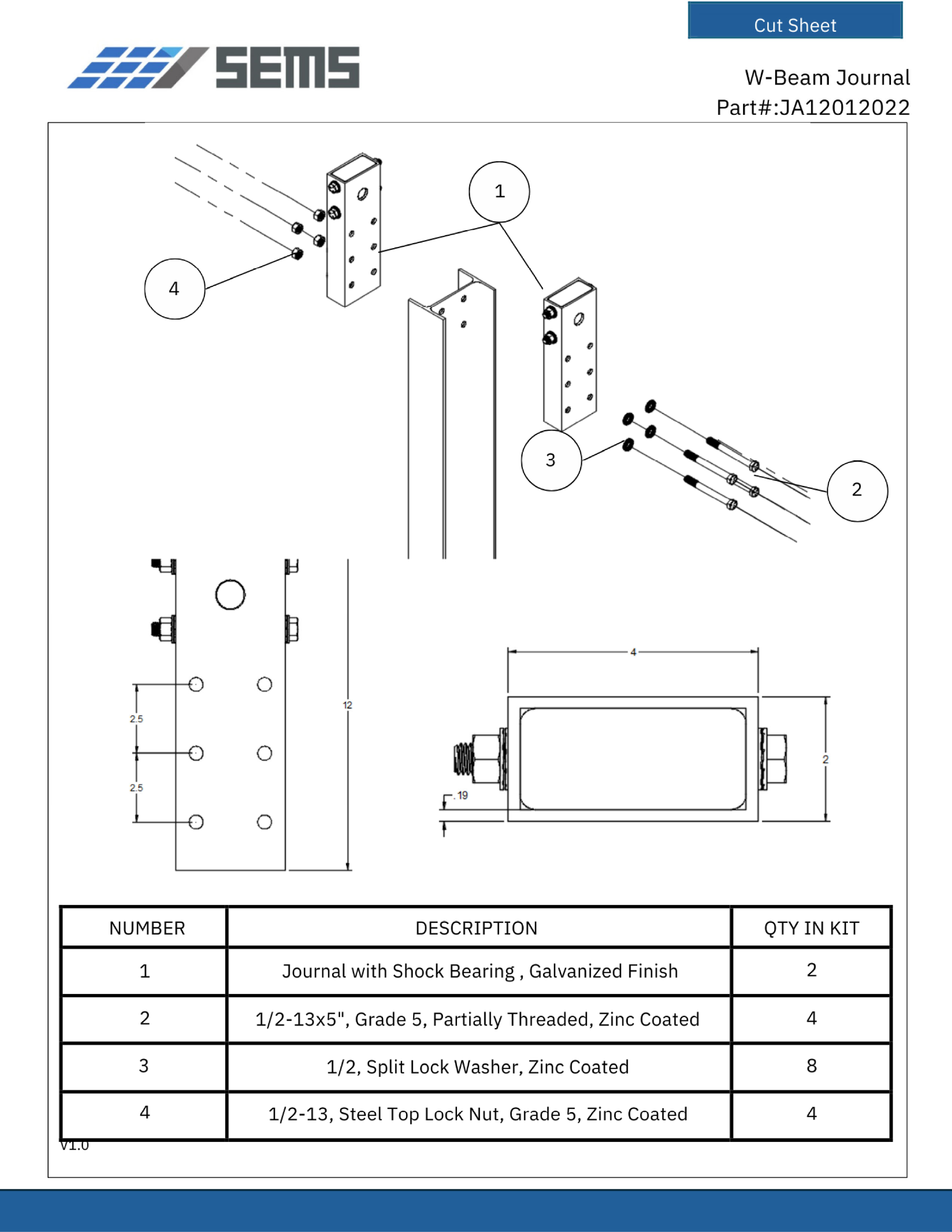

Journal cut sheet Structural
Structural Component

Avans Series Journal

Precision-machined journal assembly connecting the bearing rail to the main structural frame. Enables tilt adjustment and secure locking.

PDF 369 KB
View Download
Main Rails cut sheet Rails
Rail System

Avans Series Main Rails

Primary longitudinal rail members spanning the full length of the array. Closed-form tubular design for superior torsional rigidity.

PDF 242 KB
View Download

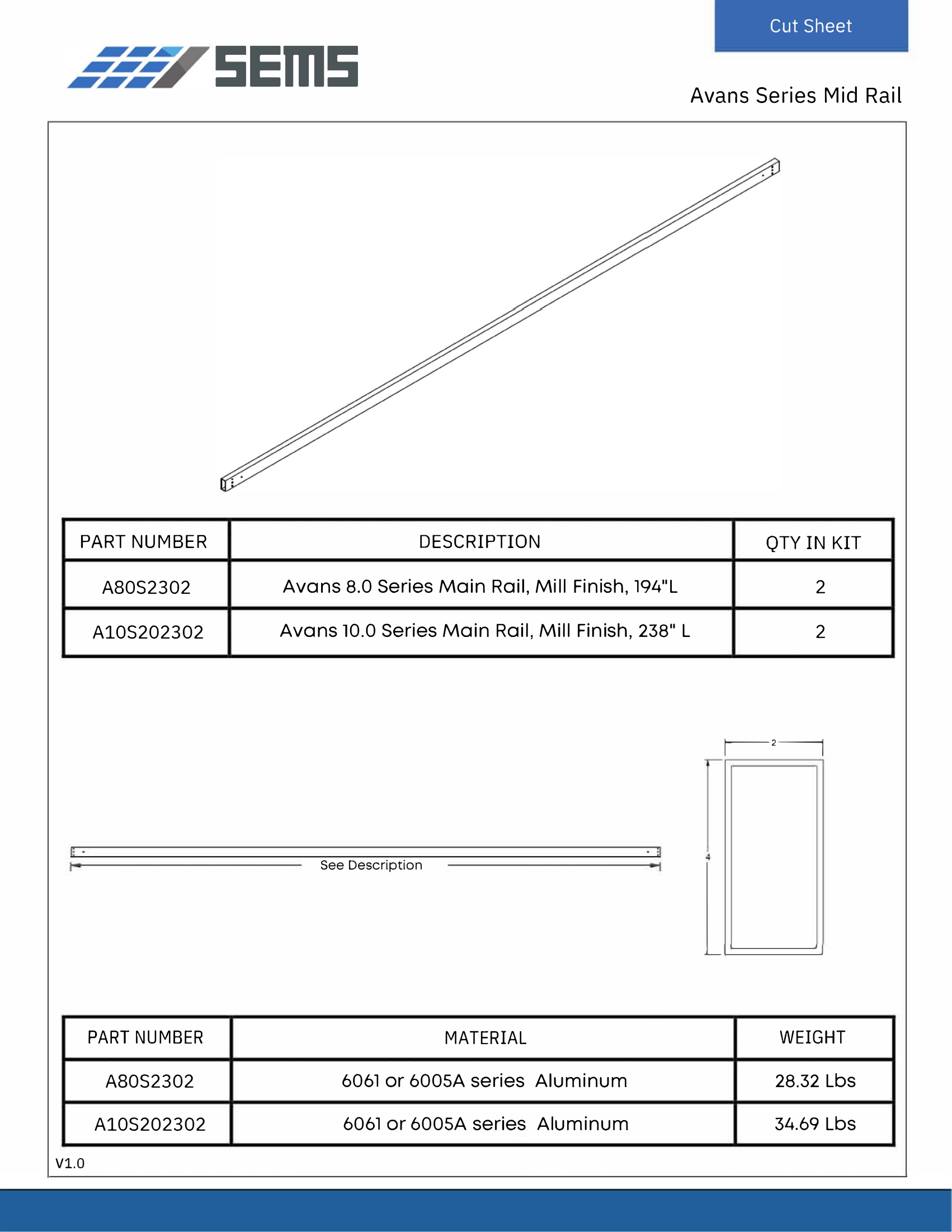

Mid Rail cut sheet Rails
Rail System

Avans Series Mid Rail

Intermediate rail positioned between main rails for additional module support. Maintains consistent panel spacing across the array.

PDF 81 KB
View Download

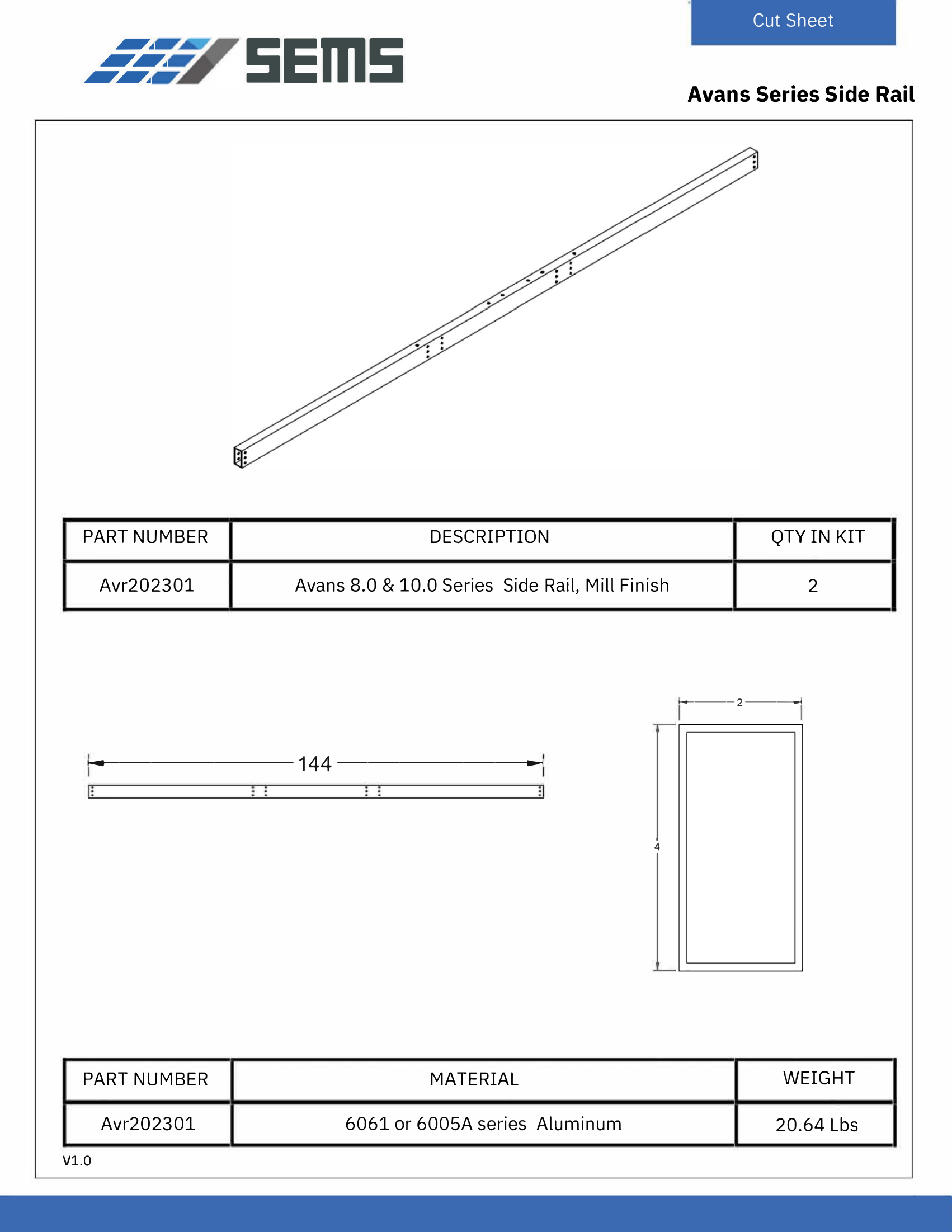

Side Rail cut sheet Rails
Rail System

Avans Series Side Rail

Outer perimeter rail securing the edge modules of the array. Provides structural closure and clean edge termination.

PDF 79 KB
View Download

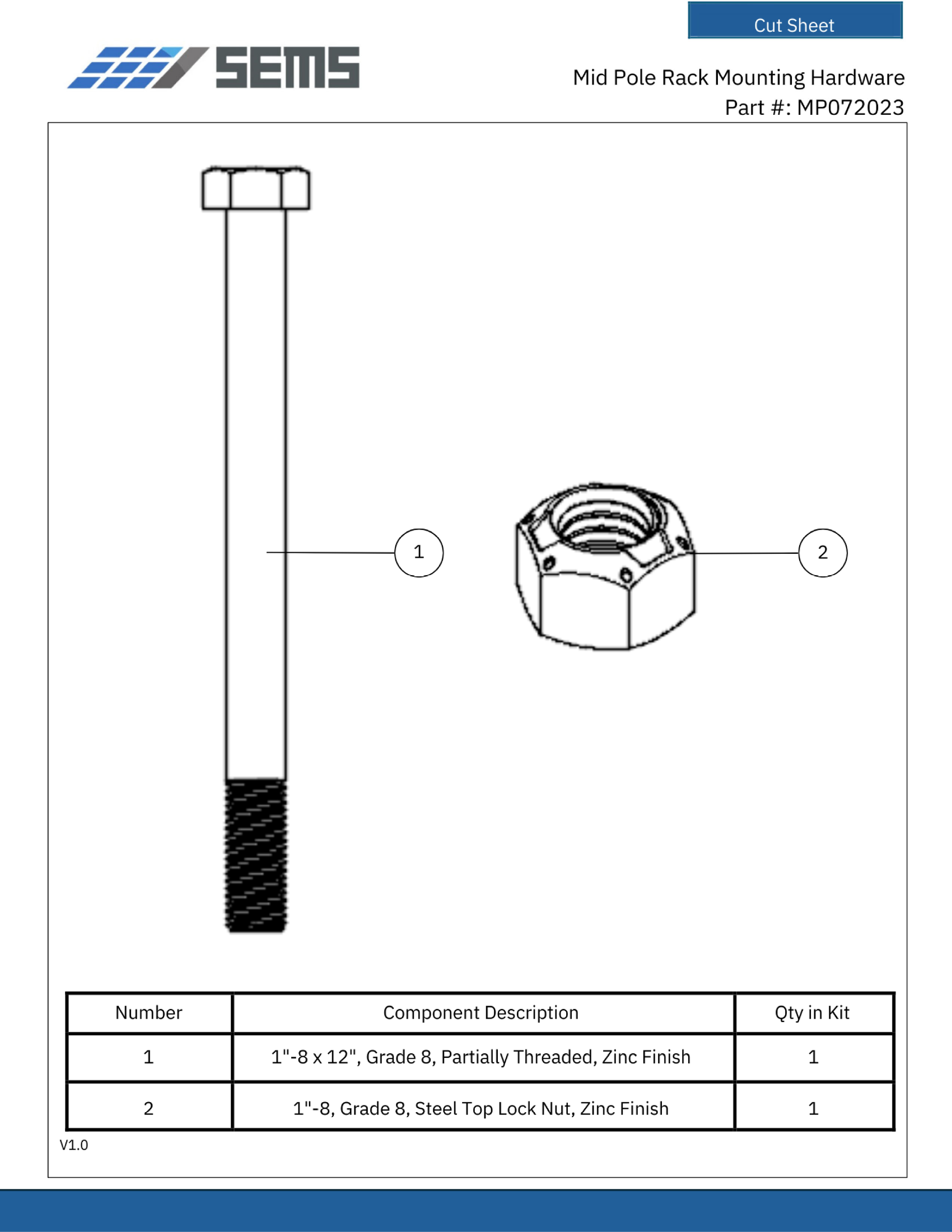

Mid Pole Rack Mounting Hardware cut sheet Hardware
Hardware Kit

Mid Pole Rack Mounting Hardware

Complete fastener kit for mid-pole rack connections. Grade 5 zinc-coated bolts, lock washers, and steel lock nuts.

PDF 274 KB
View Download

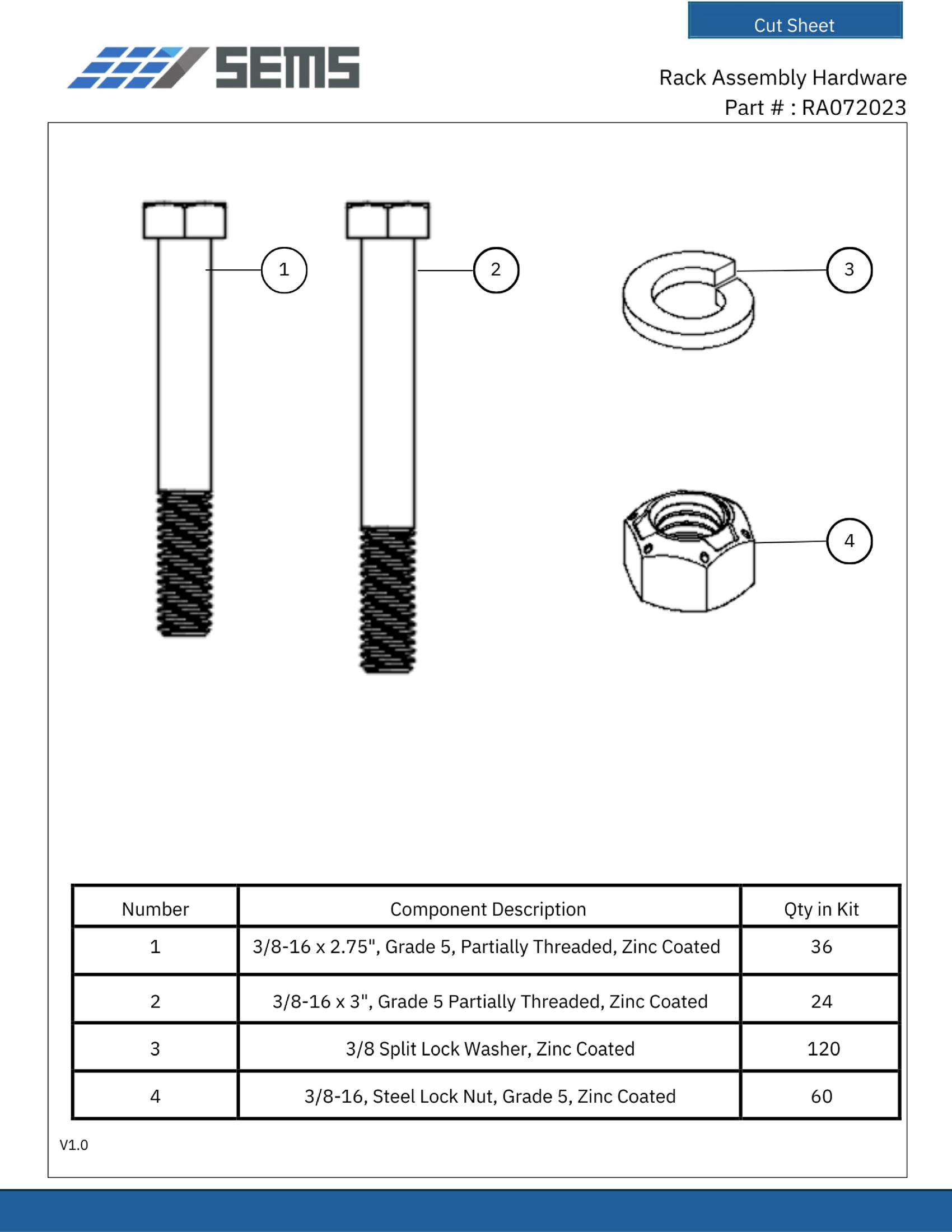

Rack Assembly Hardware cut sheet Hardware
Hardware Kit

Rack Assembly Hardware

Full fastener set for rack assembly — 3/8-16 Grade 5 bolts (2.75" & 3"), split lock washers, and steel lock nuts. All zinc-coated.

PDF 363 KB
View Download

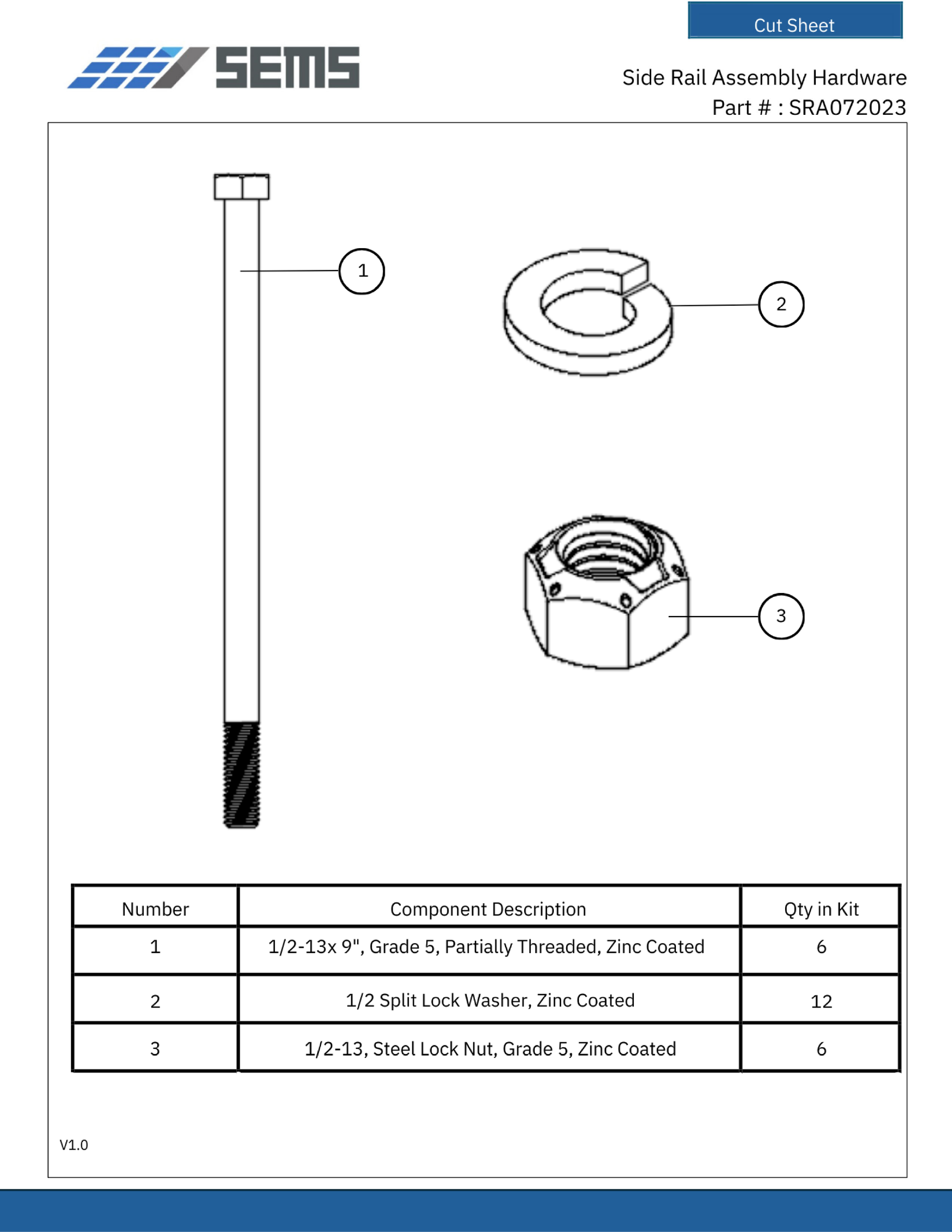

Side Rail Assembly Hardware cut sheet Hardware
Hardware Kit

Side Rail Assembly Hardware

Dedicated fastener package for side rail connections. Precision-matched bolt lengths and lock hardware for perimeter structural integrity.

PDF 316 KB
View Download

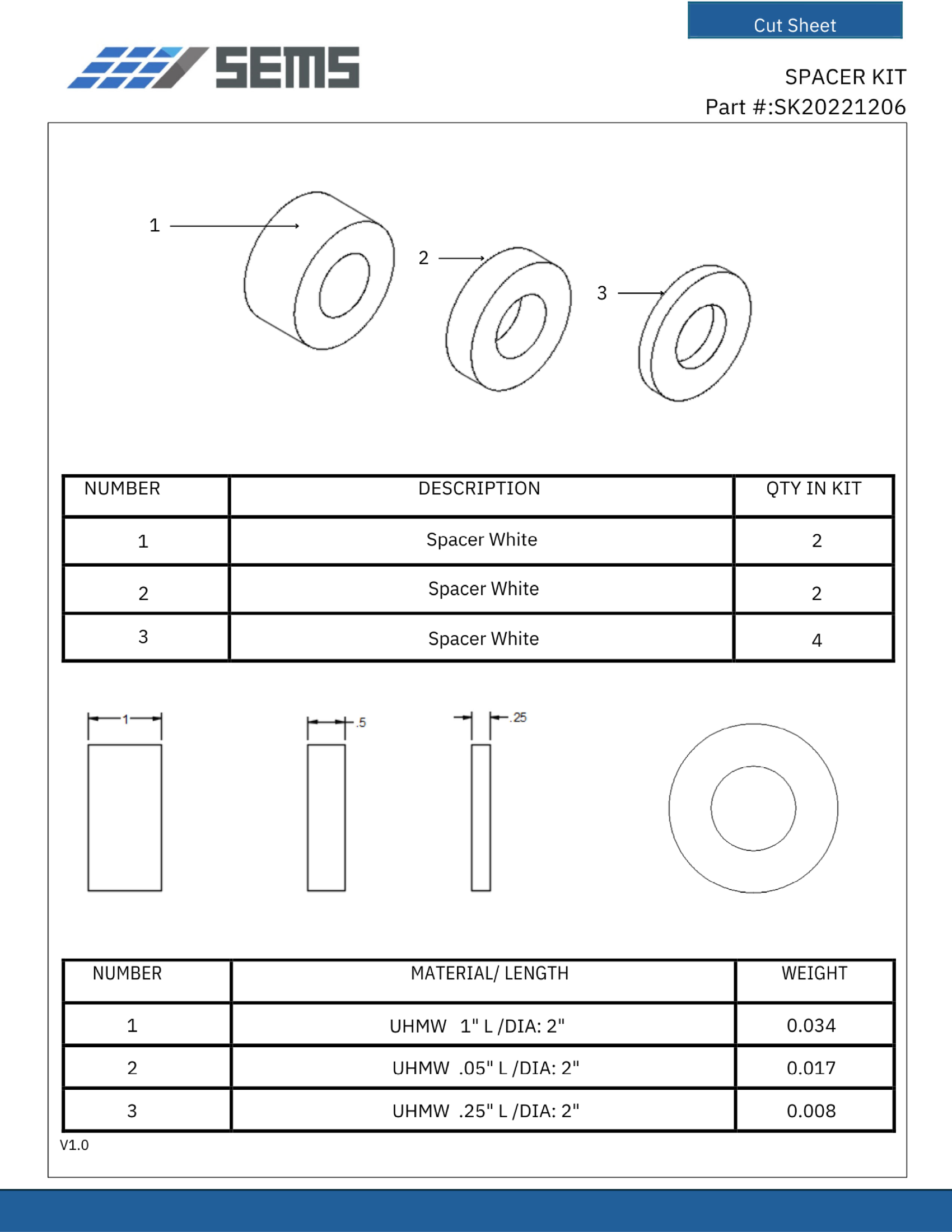

Spacer Kits cut sheet Hardware
Hardware Kit

Spacer Kits

Precision spacer sets for maintaining exact component clearances and alignment tolerances throughout the assembled racking system.

PDF 287 KB
View Download
Start/End Pole Rack Mounting Hardware cut sheet Hardware
Hardware Kit

Start/End Pole Rack Mounting Hardware

Fastener kit for start and end pole rack mount connections. Ensures secure termination at array boundaries.

PDF 277 KB
View Download

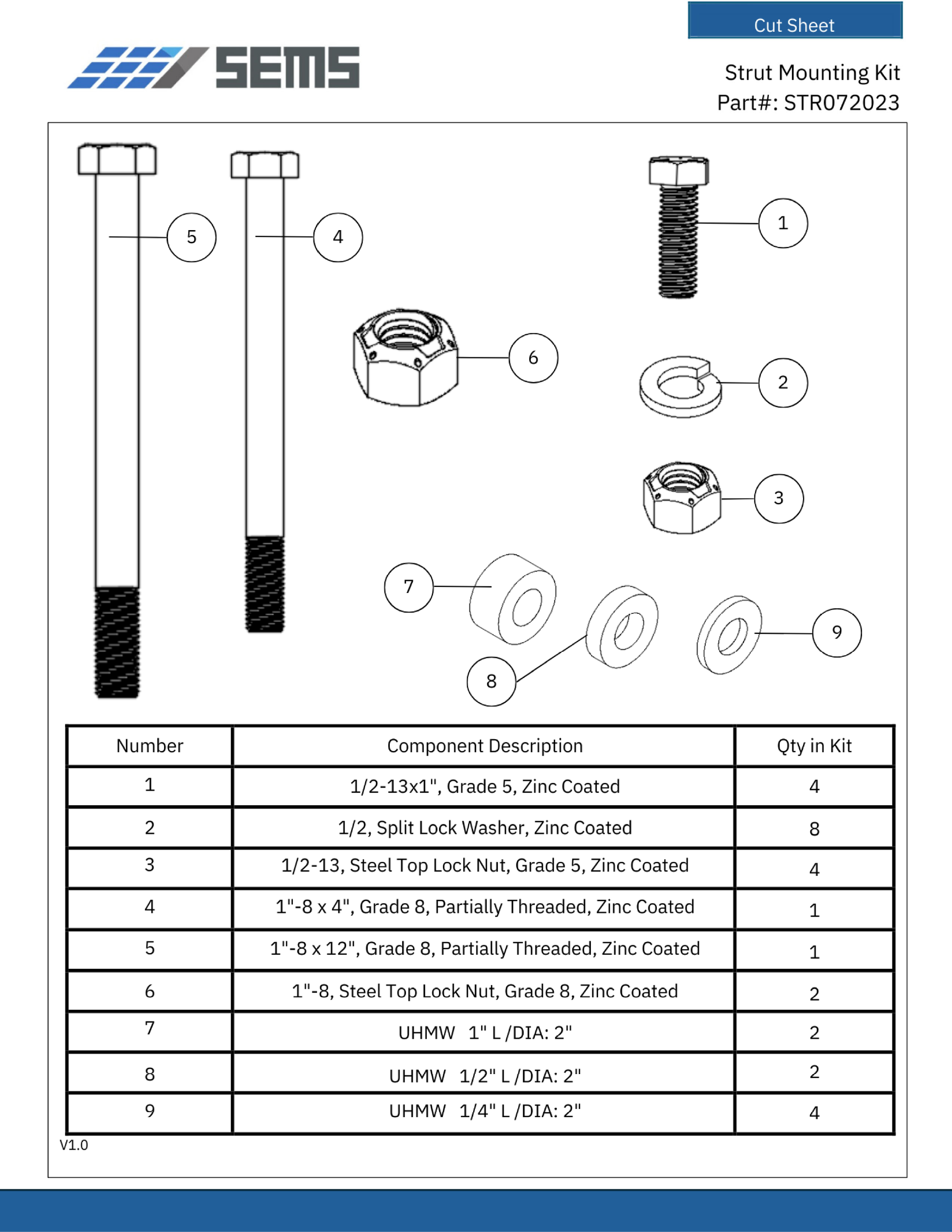

Strut Mounting Kit cut sheet Hardware
Hardware Kit

Strut Mounting Kit

Complete strut channel mounting hardware for versatile attachment configurations. Includes spring nuts, bolts, and channel connectors.

PDF 448 KB
View Download
